Pull Type Tile Cart

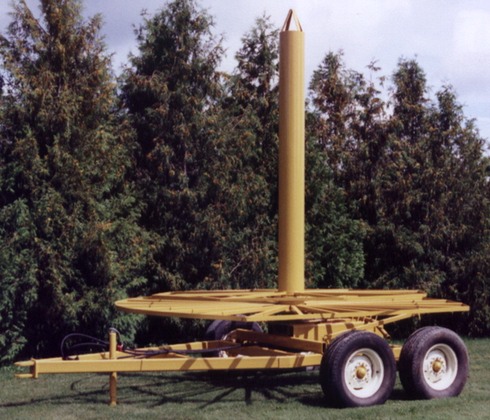

tilecartfrnt2

Johnson Drainage Plows started building tile carts in 1989.

We continue to make improvements to our carts.  Walking tandems, increase the size of the table from 10 feet to 11 feet.  The eleven-foot table and longer 10” tube make it easier to handle maxi coils of tile.

The flat side makes the cart more rugged and doesn’t make a difference when going down the road or unrolling the tile.

The table consists of 24 1 1/2” by 1/8” walled square tubing.  I use a 3” axle to support the table.  All carts come with a hydraulic brake.

Optional: power pack

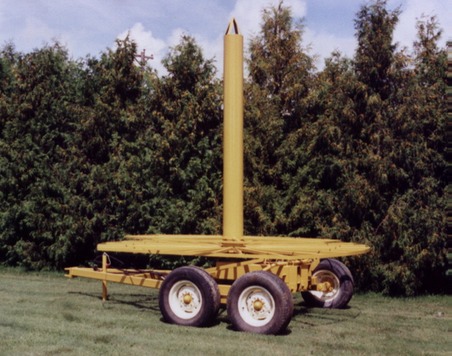

tilecartbackside


More Photos

Video:

August 27, 2013 Field Demo Day
