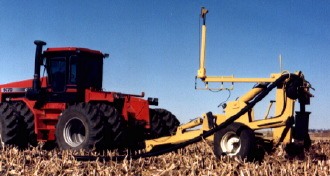

7 1/2' Pull Type Plow

Next
6'plowax2

Maximum Cut 7 feet 6 inches             Pull up to 12" Tile

  • Tires –  Std. Tires – 425 x 22.5    Std. Hubs – 8 bolt
  • 8’ 6“ from bottom of the boot to the frame
  • Shank – 4” x 16” solid hi tensile plate – CR A572 grade 50*   *Hardest weldable steel, same as used by the major equipment manufacturers
  • 3” & 4” tile boot –front of plow 7” wide
  • 5” & 6” tile boot –front of plow 9” wide
  • 8” tile boot – front of plow 12” wide
  • Appr. weight of plow is 12,100 lbs.
  • Front of plow 27” slope
  • 25% less tongue weight
